Wheel Spacer Thickness Calculator
This tool helps determine the appropriate wheel spacer thickness to achieve a desired track width while ensuring it stays within safe limits.
Wheel spacers are thin metal or aluminum plates that sit between the wheel hub and the wheel itself, moving the wheel outward to adjust track width or accommodate larger brakes. They come in various thicknesses and bolt‑pattern configurations, and their proper use can change a vehicle’s handling dynamics.
Quick Take
- Spacers themselves don’t need a separate alignment, but the wheels they move do.
- Improperly aligned wheels after installing spacers cause uneven tire wear and degraded handling.
- Use a torque wrench set to the manufacturer‑specified torque spec for lug nuts.
- Check camber, caster and toe angles after the install; adjust if they fall outside OEM limits.
- Consider “aligned spacers” that incorporate built‑in shims to preserve factory geometry.
What Exactly Is a Wheel Spacer?
A spacer shifts the wheel’s mounting surface outward from the wheel hub. The main reasons drivers add spacers are:
- To clear larger brake calipers or rotors.
- To achieve a more aggressive stance by widening track width.
- To correct negative wheel offset that can cause the tire to rub the fender.
When a spacer is bolted on, the wheel’s mounting plane moves, which changes the wheel’s angle relative to the suspension knuckles. That’s where alignment comes into play.
Why Alignment Still Matters After Adding Spacers
Even though the spacer itself is a rigid plate, moving the wheel changes three critical angles that a certified alignment measures:
- Camber - the tilt of the wheel from vertical.
- Caster - the forward‑or‑rearward tilt of the steering axis.
- Toe - the angle the wheels point inward or outward relative to the vehicle’s centerline.
If any of these drift beyond the manufacturer’s limits, you’ll notice:
- Uneven tire wear - especially on the inner or outer edge.
- Pulled steering - the car drifts to one side.
- Reduced grip during cornering - the vehicle feels “loose”.
Because the spacer alters the distance between the hub and the tire’s contact patch, the tire’s contact patch may no longer line up with the suspension’s design geometry. The result is a shift in camber and toe that needs correction.
Checking and Adjusting Alignment After Spacer Installation
Follow these steps to verify that your wheels are still within spec:

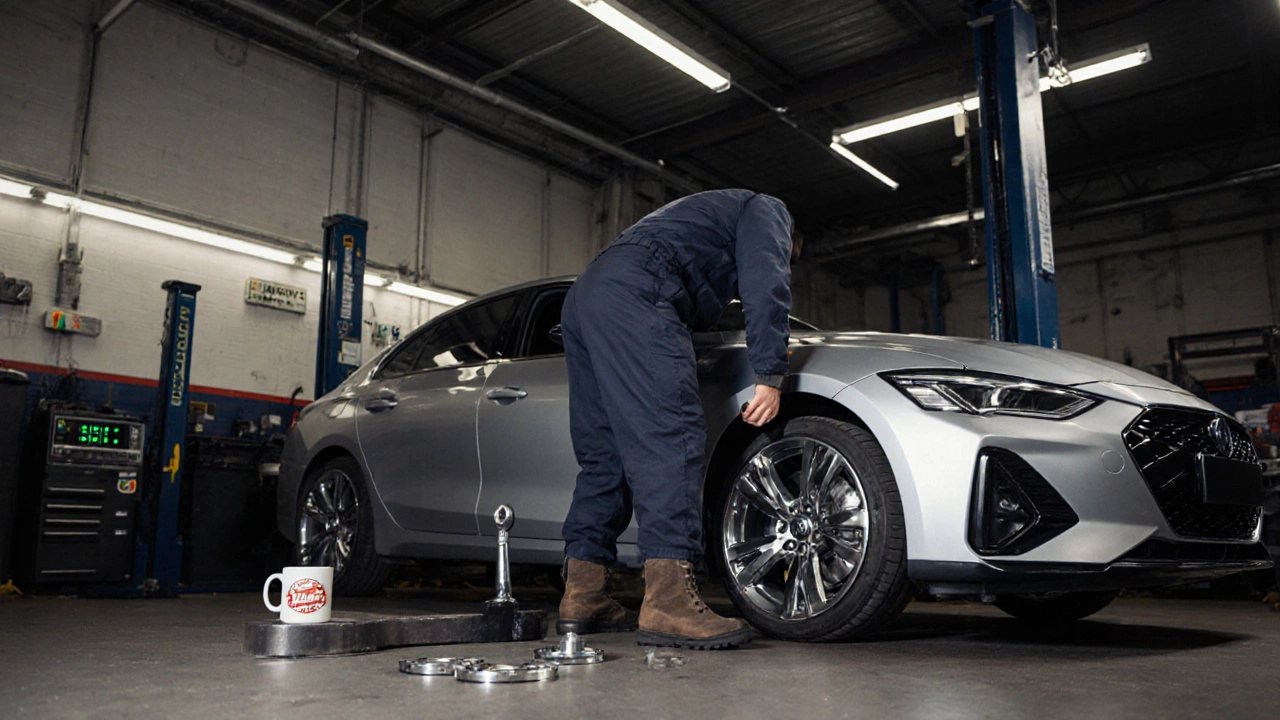

- Park the car on a level surface and perform a visual inspection of lug nut torque.
- Take the vehicle to a reputable alignment shop or use a DIY alignment kit. Have them record the pre‑install angles for comparison.
- After installing the spacers, measure the new camber, caster, and toe values.
- If any reading exceeds the OEM tolerance (usually +-1° for camber, +-0.1° for toe), request an adjustment.
- Camber can be tweaked by adjusting control arm bolts or using camber plates.
- Toe is typically corrected with tie‑rod adjustments.
- Re‑check torque on all lug nuts after the alignment to ensure no stretch has occurred.
Many performance shop owners recommend a full alignment any time you change wheel offset or add spacers larger than 5mm.
Installation Essentials: Tools and Torque Specs
The key to a safe spacer setup is proper torque. Every vehicle lists a specific torque specification for wheel fasteners, typically ranging from 80 to 130Nm (60‑95lb‑ft).
- Use a calibrated torque wrench - don’t rely on “feel”.
- Apply torque in a star pattern to keep the wheel centered.
- Double‑check after a short drive (50‑100km) and re‑torque if necessary.
Make sure you also have the correct lug nuts and wheel studs. Some spacers require longer studs or specific nuts to achieve the proper clamping force.
Impact on Suspension and Steering Geometry
Beyond wheel angles, spacers affect the whole front‑end dynamics:
- Suspension travel - a wider track can slightly increase scrub radius, altering steering effort.
- Steering kickback - the increased lever arm may make road feel more “vibrant”.
- Load distribution - if the wheel sits further out, the load on the wheel bearing can increase, potentially shortening its lifespan.
For most street cars, these changes are negligible if the spacer thickness is under 10mm and the alignment is corrected. However, for high‑performance or track applications, engineers often opt for purpose‑built “aligned spacers” that incorporate built‑in shims to preserve factory geometry without a post‑install alignment.
Comparison: Standard Spacers vs. Aligned Spacers
| Feature | Standard Spacer | Aligned Spacer |
|---|---|---|
| Installation steps | Install → re‑align wheels | Install (no re‑align needed) |
| Cost | Low ($30‑$70 per pair) | Higher ($80‑$150 per pair) |
| Impact on camber/toe | Changes angles, may exceed OEM limits | Angles remain within OEM limits |
| Wear on wheel bearings | Slightly increased if mis‑aligned | Neutral, as geometry is preserved |
| Recommended for track use | Only with post‑install alignment | Yes - factory‑tuned geometry |
Choosing between them depends on budget, how much you trust an alignment shop, and whether you plan to push the car hard on a track.
Common Pitfalls and How to Avoid Them
Even experienced builders make mistakes. Here are the most frequent issues and quick fixes:
- Using the wrong bolt pattern - always match the spacer’s pattern to the hub’s; mixing patterns leads to stripped studs.
- Skipping torque verification - under‑torqued nuts can let the spacer wobble, over‑torqued can stretch studs.
- Neglecting tire wear monitoring - after installation, check tread depth every 500km; uneven wear signals alignment drift.
- Installing overly thick spacers - more than 15mm can cause wheel‑arch contact and stress on suspension components.
- Ignoring aftermarket lug nut length - spacers increase the distance; longer nuts prevent the wheel from sitting too deep.
By staying vigilant on these points, you keep the car safe and the look sharp.
Related Concepts and Next Steps
Understanding spacers opens the door to a few adjacent topics you may want to explore next:
- Wheel offset calculators - determine the ideal spacer thickness for a given tire size.
- Camber plates - adjustable inserts that let you fine‑tune camber without a full alignment.
- Performance suspension upgrades - coil‑overs, adjustable control arms, and how they interact with spacer geometry.
- Wheel balance techniques - proper dynamic balancing after any changes to wheel mass or position.
Each of these areas further refines handling and safety, especially if you’re moving toward a performance build.
Frequently Asked Questions
Do I need a professional alignment after installing wheel spacers?
Yes. Even though the spacer itself is a solid plate, it moves the wheel outward and changes camber and toe angles. A professional alignment ensures those angles stay within the manufacturer’s specifications, preventing uneven tire wear and handling issues.
Can I use any torque value for lug nuts when spacers are installed?
No. Always follow the vehicle’s published torque spec for wheel fasteners. Most cars call for 80‑130Nm (60‑95lb‑ft). Using a calibrated torque wrench and the correct pattern is essential to avoid stud stretch or wheel wobble.
What’s the difference between standard spacers and aligned spacers?
Standard spacers simply move the wheel outward; they usually require a post‑install alignment to correct altered camber and toe. Aligned spacers incorporate built‑in shims that preserve factory geometry, so a separate alignment is often unnecessary, though a check is still recommended.
Will wheel spacers affect my tire wear?
If the wheels are not properly aligned after the spacers are installed, you’ll see uneven wear-usually on the inner or outer edges. Correcting camber and toe through an alignment will keep tread wear even.
Is there a maximum thickness for wheel spacers?
While there’s no universal limit, most manufacturers recommend staying below 15mm (≈0.6in). Thicker spacers increase the risk of fender rub, higher stress on wheel bearings, and may push the wheel outside the suspension’s optimal geometry.
